Eljen GSF Septic Systems
Eljen GSF authorized distributor and installer based in Redding, California. NSF Standard 40 certified treatment in a smaller footprint.
Get in TouchLooking for the Eljen Geotextile Sand Filter?
RAS General Contractors supplies Eljen GSF modules and installs complete GSF systems. Whether you're a property owner, contractor, or septic designer, we can help you get the product and the support you need to get your system in the ground.
What Is the Eljen GSF?
The Eljen GSF is a passive advanced treatment system for onsite septic leach fields. Using a patented two-stage Bio-Matt™ pretreatment process, it delivers cleaner than secondary treated effluent to the soil. That higher level of treatment helps the soil absorb effluent more effectively, so the system can do more in a smaller area than a traditional leach field.
The Eljen GSF is tested and certified by NSF to NSF/ANSI Standard 40.
Benefits of the Eljen GSF System
-
NSF Standard 40 Certified
The GSF has been tested and certified by NSF, an independent third party, to NSF Standard 40.
-
Smaller Installation Area
The system treats and disperses wastewater in the same footprint and requires less space than traditional systems.
-
No Stone Required
GSF systems are built without drain rock, which simplifies installation and reduces material hauling.
-
Greater Long Term Performance
The modules handle most of the treatment work, protecting the native soil so it keeps absorbing effluent effectively over time.
-
Lower Site Impact
A smaller system means less excavation and less disturbance to landscaping, trees, and the surrounding property.
-
Lightweight and Easy to Install
GSF modules are light enough to move and place by hand, which helps keep installation efficient.
How the Eljen GSF System Works
The GSF system treats wastewater in two stages before it returns to the ground.
Primary Treatment: The GSF Modules
Effluent from the septic tank flows through a perforated pipe centered on top of each GSF module and into the corrugations of the module's core. As it moves through the Bio-Matt™ fabric, the effluent is filtered and treated by beneficial bacteria. The module's design creates far more treatment surface area than its footprint alone, and open air channels inside keep oxygen moving to support aerobic treatment. A protective fabric covers the top and sides of each module, keeping the sand and soil below from clogging while holding effluent within the module until it can be treated.
Secondary Treatment: The Sand Layer and Native Soil
Treated effluent drips into a layer of specified sand, which keeps flow unsaturated as it moves into the native soil. The sand also supports nitrification, which lowers the oxygen demand on the soil and helps prevent clogging. It protects the soil from compaction and preserves the natural cracks and channels that allow water to soak in, which is especially important in finer textured soils. The native soil provides final filtration and allows the clean water to recharge groundwater.
Who We Work With
-
Property Owners
If you have a small lot, difficult soil, or a failing leach field, an Eljen GSF system may be the solution. We can evaluate your site, handle design and permitting, and install the complete system.
-
Contractors and Installers
Need Eljen GSF modules for an upcoming job in California? Contact RAS General Contractors for product availability, pricing, and ordering.
-
Engineers and Septic Designers
Specifying GSF for a project? We can provide product information, spec sheets, and support as you plan your design.
Why Get Your Eljen GSF From RAS?
Authorized Eljen GSF distributor
Over 30 years of septic, excavation, and site work experience
Product supply and professional installation from one company
Knowledgeable support from a team that installs these systems in the field
Licensed, bonded, and insured
GSF Module Specifications
Eljen GSF A42
4 ft long x 2 ft wide x 7 in tall
Download Spec SheetEljen GSF B43
4 ft long x 3 ft wide x 7 in tall
Download Spec Sheet

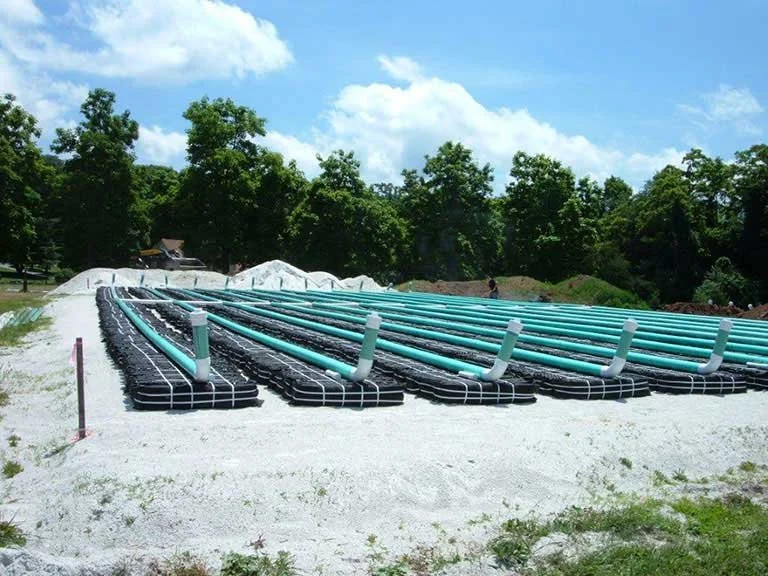

Installation Standards
Every Eljen GSF system must be installed according to Eljen's current installation instructions and local regulations. Modules are placed along their 4 foot length on a stabilized base of specified sand, with a 4 inch perforated pipe centered on top and secured with clamps. Eljen supplies the cover fabric, and substitutions are not allowed. Specified sand is then placed along the sides and ends of each row. System sizing and requirements vary by local agency, so check with your local environmental health department before designing a system.
Frequently Asked Questions
-
RAS General Contractors is the authorized Eljen GSF distributor for California. We supply Eljen GSF modules statewide for new septic systems, leach field replacements, and septic repairs, and we offer professional Eljen GSF installation in Shasta, Tehama, Glenn, and Siskiyou Counties. Call us at (530) 410-4825 or fill out the form below to ask about product availability, pricing, and ordering.
-
Yes. The Eljen GSF (Geotextile Sand Filter) septic system is tested and certified by NSF, an independent third party, to NSF Standard 40. This certification confirms the system's wastewater treatment performance, making the Eljen GSF a trusted choice for homeowners, septic installers, and septic system designers.
-
No. Unlike a traditional gravel leach field, an Eljen GSF system is installed with a specified sand layer and does not require drain rock. Eliminating stone simplifies septic installation, reduces material hauling, and lowers the impact on your property during construction.
-
No. The Eljen GSF is a passive advanced treatment system, so it has no motors, blowers, or electrical components in the treatment process. Some septic systems may still require a pump tank depending on the site layout and elevation, which we can evaluate during your septic system design.
-
In many cases, yes. Because the Eljen GSF treats and disperses wastewater in a smaller footprint than a conventional leach field, it can often fit on properties where a traditional replacement leach field would not. It's a strong option for small lots, challenging soils, and septic repairs where space is limited.
-
Yes. As an authorized Eljen GSF distributor, we supply Eljen GSF A42 and B43 modules to septic contractors, installers, and builders. Contact us for product availability, pricing, lead times, and ordering details for your next septic installation.
-
In California, septic system approval is handled by your local county environmental health department. We recommend confirming Eljen GSF requirements with your local agency during the septic design and permitting phase. Our team can help guide you through septic design, soil testing, and permitting for your project.
-
RAS General Contractors is the authorized Eljen GSF distributor for California, supplying Eljen GSF modules, engineering, and training to septic contractors, installers, engineers, and property owners throughout the state.
Wherever your project is located in California, we can help you get the Eljen GSF products you need for your sewage dispersal, septic system, leach field replacements, and septic repairs.
For Eljen GSF installation and our full range of septic services, including septic design, permitting, soil testing, and leach field installation, we serve Shasta, Tehama, Trinity, Glenn, Lassen, and Siskiyou Counties and the surrounding areas, including Redding, Anderson, Red Bluff, Corning, Willows, Orland, Yreka, Weed, and Mount Shasta.
Get in Touch With RAS General Contractors
If you have any questions about our services or about an upcoming project, please get in touch. We look forward to serving you!
